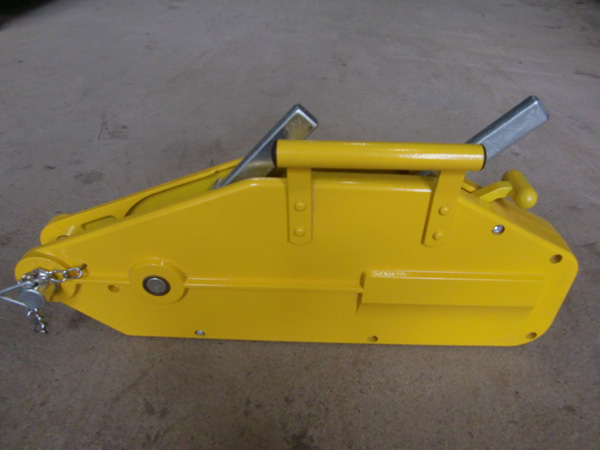

1.Measures small and light.

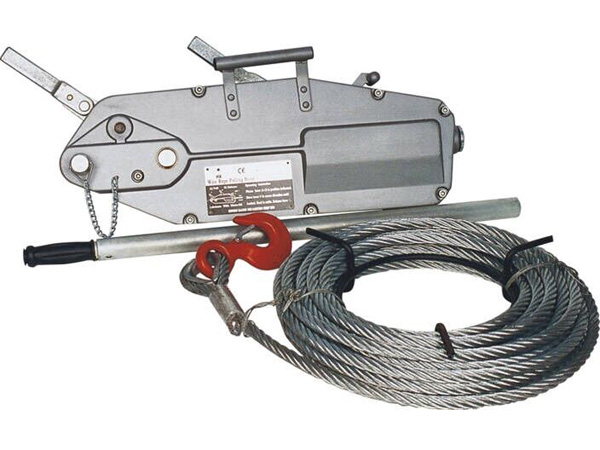

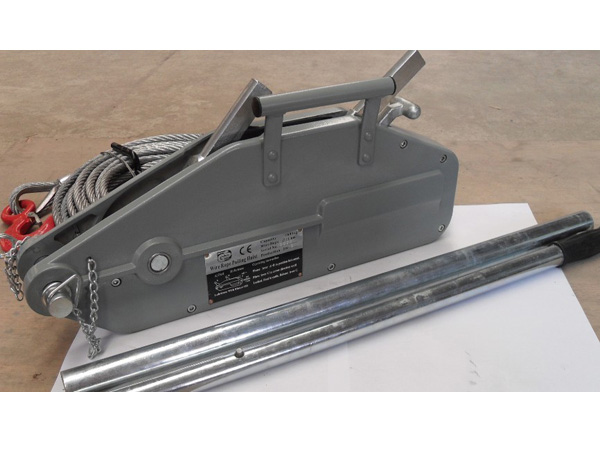

2..All hoists are supplied complete with 20 meter wire rope and an extendable operating lever.

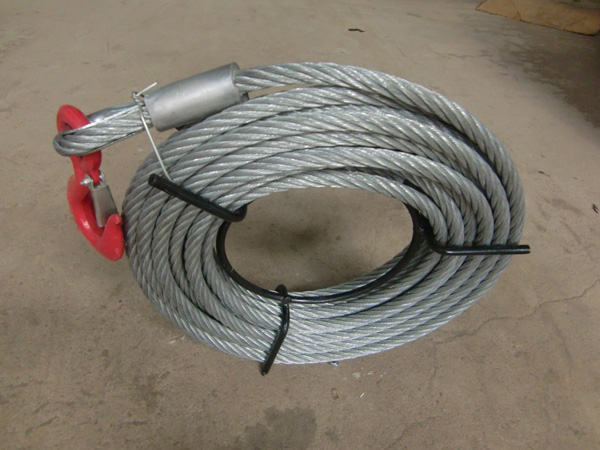

3.Wire rope is tapered one end and fitted with a hook and safety catch at the other end.
4.The hoist has low maintenance requirements and is easy service.
5.Overload protection ensures high personal safety when in operation.
6.Specially built-in shear pins can be replaced without removing the load.
|
Rated capacity(kg) |
800 |
1600 |
3200 |
5400 |
|
Rated forward handpower（N） |
343 |
441 |
441 |
745 |
|
Rated forward travel（mm） |
≥52 |
≥55 |
≥28 |
≥30 |
|
Rope diameter（mm） |
8.3 |
11 |
16 |
20 |
|
Wire rope safety factorload capacity |
5:01 |
5:01 |
5:01 |
5:01 |
|
Safety factor & static Load capacity |
5:01 |
5:01 |
5:01 |
5:01 |
|
Max traveling load |
1200 |
2400 |
4000 |
8000 |
|
Net weight（kg） |
6 |
11 |
22 |
56.5 |
|
Size A |
426 |
545 |
660 |
930 |
|
B |
235 |
280 |
325 |
480 |
|
C |
64 |
97 |
116 |
152 |
|
L1(CM) |
|
80 |
80 |
68 |
|
L2(CM) |
80 |
120 |
120 |
112 |
-
